Mobile filtration units

Filtration unit FZU1 Filtration unit FZU1

Motorimpex

Product code: 6271

maximum flow rate: 40 l/min

filtration rating: 3, 6, 10, 16, 25 µm

maximum working pressure: 5 bar

Mobile filtration unit MFU Mobile filtration unit MFU

Motorimpex

Product code: 6283

maximum flow rate: 15 l/min

filtration rating: 3, 6, 10, 16, 25 µm

maximum working pressure: 5 bar

Filtration unit FZU2 Filtration unit FZU2

Motorimpex

Product code: 6269

maximum flow rate: 80 l/min

filtration rating: 3, 6, 10, 16, 25 µm

maximum working pressure: 5 bar

Mobile oil filtration unit GRF015 Mobile oil filtration unit GRF015

MPFiltri

Product code: 2205

maximum flow rate: 15 l/min

filtration rating: 1, 3, 6, 10, 25 µm

maximum working pressure: 5 bar

Mobile oil filtration unit GRF100 Mobile oil filtration unit GRF100

MPFiltri

Product code: 2473

maximum flow rate:10 l/min

filtration rating: 1, 3, 6, 10, 25, 60 µm

maximum working pressure: 5 bar

Mobile oil filtration unit GRF261 Mobile oil filtration unit GRF261

MPFiltri

Product code: 2474

maximum flow rate: 26 l/min

filtration rating: 1, 3, 6, 10, 25, 60 µm

maximum working pressure: 5 bar

Mobile oil filtration unit GRF302 Mobile oil filtration unit GRF302

MPFiltri

Product code: 2475

maximum flow rate: 30 l/min

filtration rating: 1, 3, 6, 10, 25, 60 µm

maximum working pressure: 5 bar

Mobile oil filtration unit GRM302 Mobile oil filtration unit GRM302

MPFiltri

Product code: 2476

maximum flow rate: 30 l/min

filtration rating: 1, 3, 6, 10, 25, 60 µm

maximum working pressure: 5 bar

Mobile oil filtration unit FTU Mobile oil filtration unit FTU

MPFiltri

Product code: 2472

maximum flow rate: 15 l/min

tank capacity: 80 l

filtration rating: 1, 3, 6, 10, 25, 60 µm

maximum working pressure: 5 bar

Mobile oil filtration unit UFM040 Mobile oil filtration unit UFM040

MPFiltri

Product code: 2206

maximum flow rate: 33 l/min

filtration rating: 1, 3, 6, 10, 16, 25 µm

maximum working pressure: 5 bar

Oil pumping and filtering unit UYFA 15 Oil pumping and filtering unit UYFA 15

Ponar

Product code: 458

maximum flow rate: 15 l/min

filtration rating: 3, 6, 10, 16, 25 µm

maximum working pressure: 4 bar

Mobile filtration unit GF20 and GF40 Mobile filtration unit GF20 and GF40

OMT

Product code: 1893

maximum flow rate: 10 or 38 l/min

filtration rating: 3–250 µm

maximum working pressure: 5 bar

Mobile filtration unit MPF Mobile filtration unit MPF

Seim

Product code: 1639

maximum flow rate: 150 l/min

filtration rating: 25 µm

maximum working pressure: 5 bar

FluidAqua Mobil FAM5 FluidAqua Mobil FAM5

Hydac

Product code: 2555

maximum flow rate: 5 l/min

filtration rating: 2, 5, 10, 20 µm

maximum working pressure: 8 bar

FluidAqua Mobil FAM10 FluidAqua Mobil FAM10

Hydac

Product code: 2556

maximum flow rate: 18 l/min

filtration rating: 2, 5, 10, 20 µm

maximum working pressure: 5 bar

FluidAqua Mobil FAM 25/45/60/75/95 FluidAqua Mobil FAM 25/45/60/75/95

Hydac

Product code: 2557

maximum flow rate: 114 l/min

filtration rating: 2, 5, 10, 20 µm

maximum working pressure: 5 bar

FluidCarrier Compact FCC with tank FluidCarrier Compact FCC with tank

Hydac

Product code: 2558

maximum flow rate: 15 l/min

tank capacity: 70 l

filtration rating: 2, 4, 5, 10, 20 µm

maximum working pressure: 3.5 bar

FluidCleaner Mobile FCM FluidCleaner Mobile FCM

Hydac

Product code: 2559

maximum flow rate: 100 l/min

filtration rating: 3, 5, 10, 20, 40 µm

maximum working pressure: 10 bar

Barrel transportation and filtration trolley FT 5 Barrel transportation and filtration trolley FT 5

Hydac

Product code: 2560

maximum flow rate: 40 l/min

barrel capacity: 200 l

filtration rating: 3, 5, 10, 20, 40 µm

maximum working pressure: 4.5 bar

Filtromat OF5 Filtromat OF5

Hydac

Product code: 2561

maximum flow rate: 40 l/min

filtration rating: 3, 5, 10, 20, 40 µm

maximum working pressure: 4.5 bar

Filtromat OF5 Mini Filtromat OF5 Mini

Hydac

Product code: 2563

maximum flow rate: 15 l/min

filtration rating: 1, 2, 5, 10, 20 µm

maximum working pressure: 4.5 bar

Filtromat OF5 Mobile Filtromat OF5 Mobile

Hydac

Product code: 2564

maximum flow rate: 40 l/min

filtration rating: 3, 5, 10, 20, 40 µm

maximum working pressure: 4.5 bar

Filtration unit OF5S with hydraulic fluid condition monitoring system 2000 FCU Filtration unit OF5S with hydraulic fluid condition monitoring system 2000 FCU

Hydac

Product code: 2562

maximum flow rate: 40 l/min

filtration rating: 3, 5, 10, 20, 40 µm

maximum working pressure: 4.5 bar

Filtration unit OF7 Filtration unit OF7

Hydac

Product code: 2565

maximum flow rate: 15 l/min

filtration rating: 3, 5, 10, 20 µm

maximum working pressure: 3.5 bar

Development and production of mobile filtering units

Hydraulic oils used in industry and on mobile equipment are supplied in barrels or cans, which may contain abrasive particles of a sufficiently large size. In this initial form, oils are not suitable for operation of almost any hydraulic system, since the durability of its operation directly depends on the purity of the oil used. Therefore, when refueling hydraulic systems with a working fluid, it is advisable to use mobile filtering units (MFU), which provide the necessary class of oil purity for trouble-free operation of the system, increase the life of the components of the hydraulic system and minimize equipment downtime.

Using MFU you provide your system with longer term of work and minimize expencesses for its service. As a result, in most cases, you do not encounter a failure of hydraulic equipment and production downtime.

Using MFU don’t have any industry restrictions. You can use it in any branch of industry and on any type of mobile equipment where there are both standard and non-standard hydraulic systems, lubrication systems, test benches, cooling units, etc.

Depending on the volume of the hydraulic tank, the corresponding types of MFU are used.

  • Mini-MFU

Mini-MFU (MMFU) are mobile filtering units with cartridge (can) low-pressure filter used to clean the working fluid in mini-units and compact power packs, volume of tank which does not exceed 40 liters. From MFU line, manufactured by "Motorimpex", Mini-MFU is the smallest, which gets her some benefits when using in ard-to-reach parts of industrial facilities and mobile equipment. The obligatory complete set of MMFU ... includes an indicator of contamination of the filter element, which allows timely replacement.

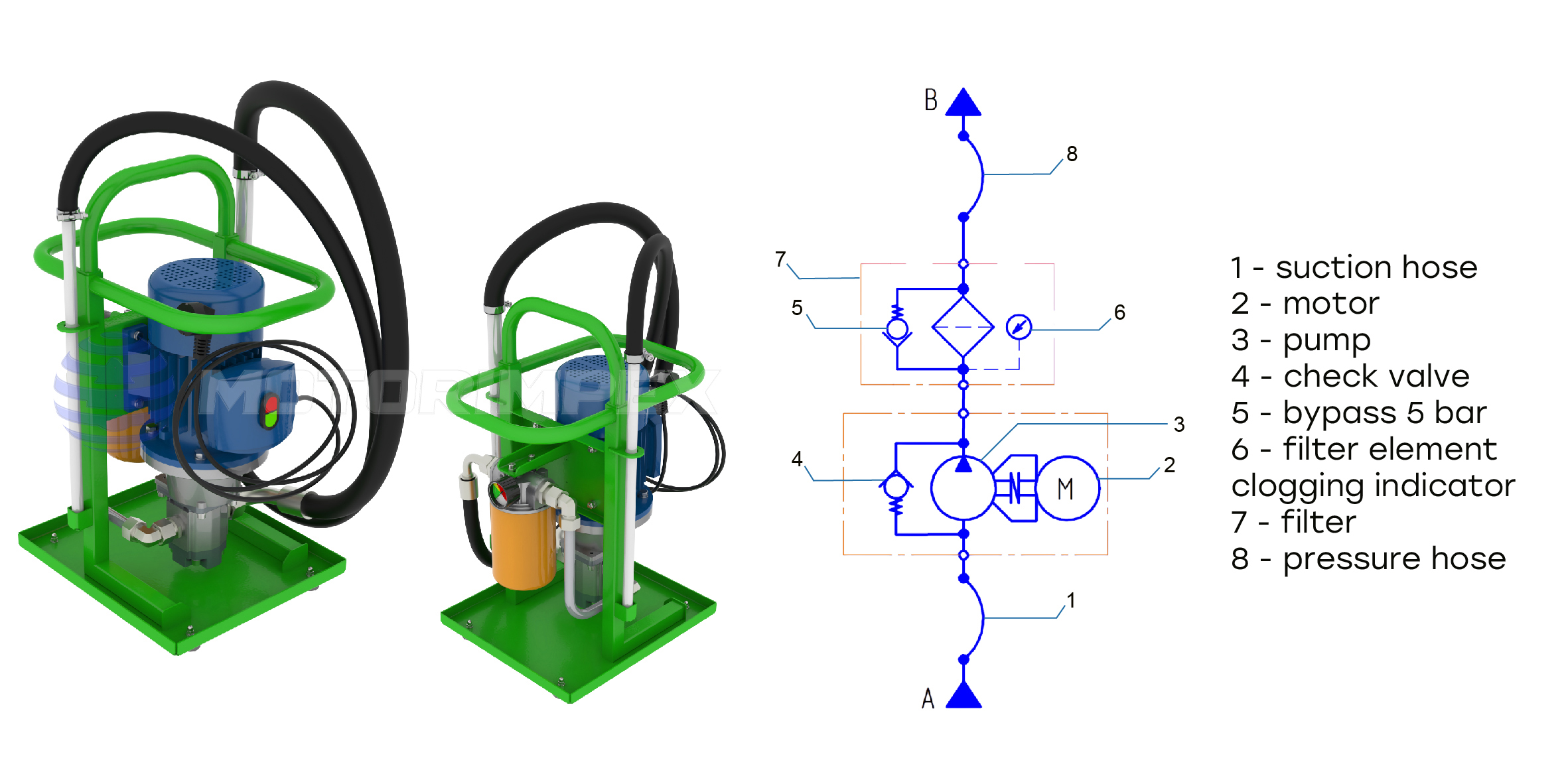

Мини фильтровально-заправочные установки | Проектирование и производство ФЗУ | Моторимпекс     Гидравлическая схема | Компактные фильтровально-заправочные установки | ФЗУ от Моторимпекс

 Power of electric motor  0,12 kW 12 V (1 phase with inventor)
0,12 kW 220 V (1 phase)
0,12 kW 220/380 V (3 phase)
Pump producity up to 15 l/min
Pump type gear
Maximum working pressure 5 bar
Working fluid type mineral oil (other for require)
Fluid viscosity 10 cSt — minimum working
400 cSt — maximum working
Filtration grade 3, 6, 10, 16, 25 mkm
Working fluid temperature -10…+80 °С
Optimal environmental temperature -20…+45 °С
Weight 11 кг





Order form



  • Mobile-filtering unit MFU1 type

MFU1... are used for filling medium-sized hydraulic systems with working fluid: from 200 to 1000 liters. This units includes one filter with high dirt capacity level. Also it contains filter element dirt capacity indicator, which allows timely replace it.
Mobile-filtering units MFU1… type can be additionally equipped with ICM class cleanliness sensors, which allow real-time monitoring of the cleanliness class of the oil entering the tank.

Transportation easiness of installation is realized due to the design with wheels and handles, which allow the service engineer easily move MFU1… to hydraulic systems which are placed at different areas at the scale of large production capacities (fleets of mobile equipment).

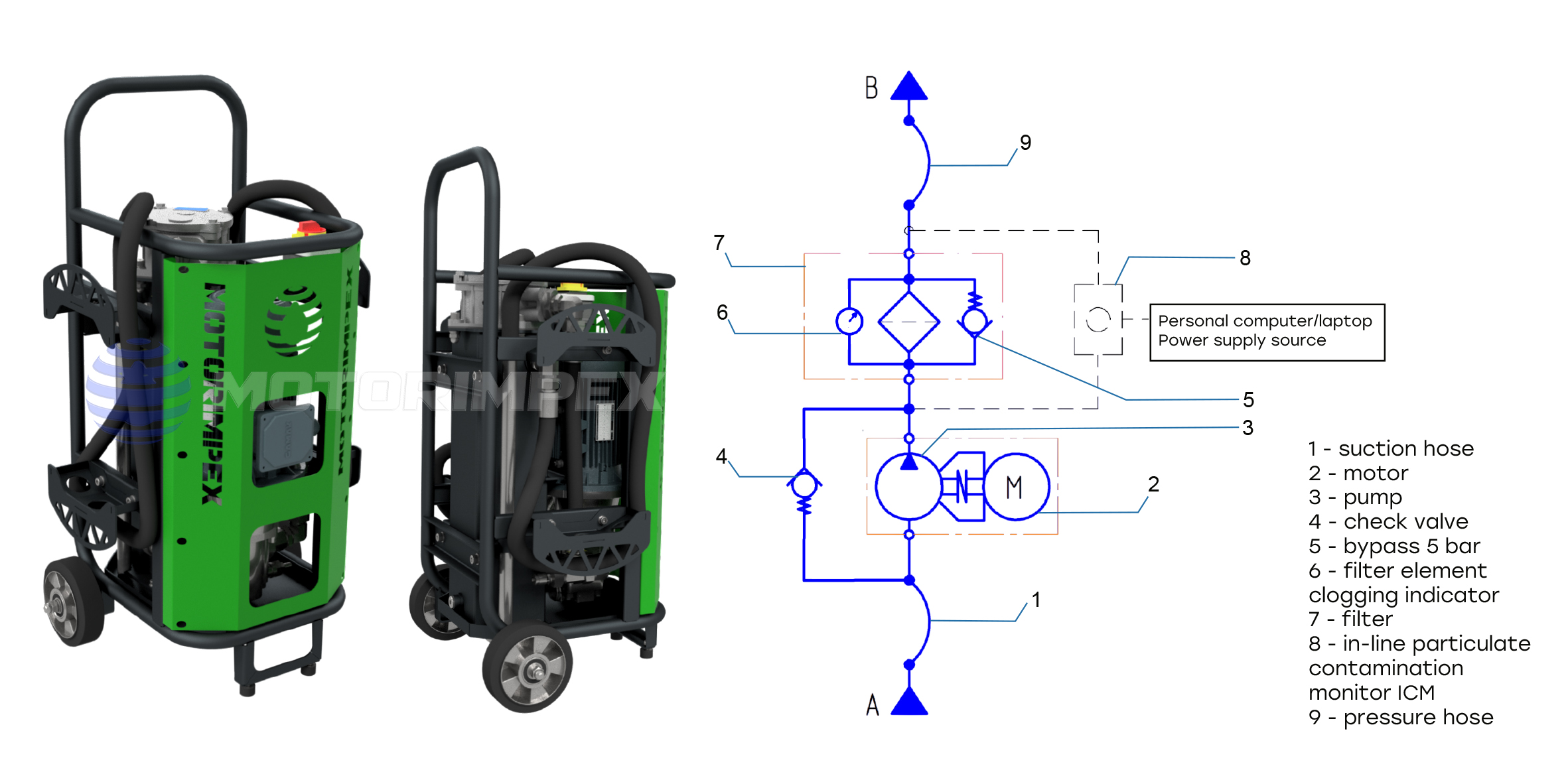

Фильтровально-заправочные установки с одним фильтром | Проектирование и производство ФЗУ1 | Моторимпекс     Гидравлическая схема | Фильтровально-заправочные установки с одним фильтром | ФЗУ1 от Моторимпекс

MFU1 characteristics :

Power of electric motor 0.75 kW 220 V (1 phase)
0.75 kW 220/380 V (3 phase)
Pump producity 20  l/min
30  l/min
40  l/min
Pump type   gear
Maximum working pressure 5 bar
Working fluid type mineral oil (other for require)
Fluid viscosity 10 cSt — minimum working
400 cSt — maximum working
Filtration grade 3, 6, 10, 16, 25 mkm
Working fluid temperature -10…+80 °С
Optimal environmental temperature -20…+45 °С
Weight 85 kg
Extra equipment  ICM fluid purity class sensor



Order form



  • MOBILE-FILTERING UNITS MFU2

MFU2… are used for big hydraulic systems (with tank volume more than 1000 liters), includes:

— two filters with high dirt capacity level:

— first filter rough cleaning,

second — fine cleaning,

it allows to reach the highest working fluid filtration level.
indicators of contamination of filter elements for their timely replacement are included in standard set.

The ease of transportation of the connection unit is embodied by the design with wheels and handles that allow the service engineer to easily move the MFU2 ... to hydraulic systems located at different sites on the scale of large production facilities or mobile equipment fleets. An additional option for mobile filtering units used for large hydraulic systems is the installation of an ICM cleanliness class sensor, which allows monitoring the change in the oil cleanliness class during filtration.

Фильтровально-заправочные установки с двумя фильтрами | Проектирование и производство ФЗУ2 | Моторимпекс     Гидравлическая схема | Фильтровально-заправочные установки с двумя фильтрами | ФЗУ2 от Моторимпекс

Characteristics MFU2:

Pump performance/Motor power

20 l/min / 0.75 kW (1, 3 phases)
40 l/min / 0.75 kW (1, 3 phases)
60 l/min / 1,1 kW (1,3 phases)
80 l/min 1,5 kW (1, 3 phases)

Pump type gear
Maximum working pressure 8 bar
Working fluid type mineral oil (other for require)
Fluid viscosity 10 cStminimum working
400 cStmaximum working
Filtration grade 3, 6, 10, 16, 25 mkm
Working fluid temperature -10…+80 °С
Optimal environmental temperature -20…+45 °С
Weight 90 kg
Extra equipment ICM fluid purity class sensor



Order form
