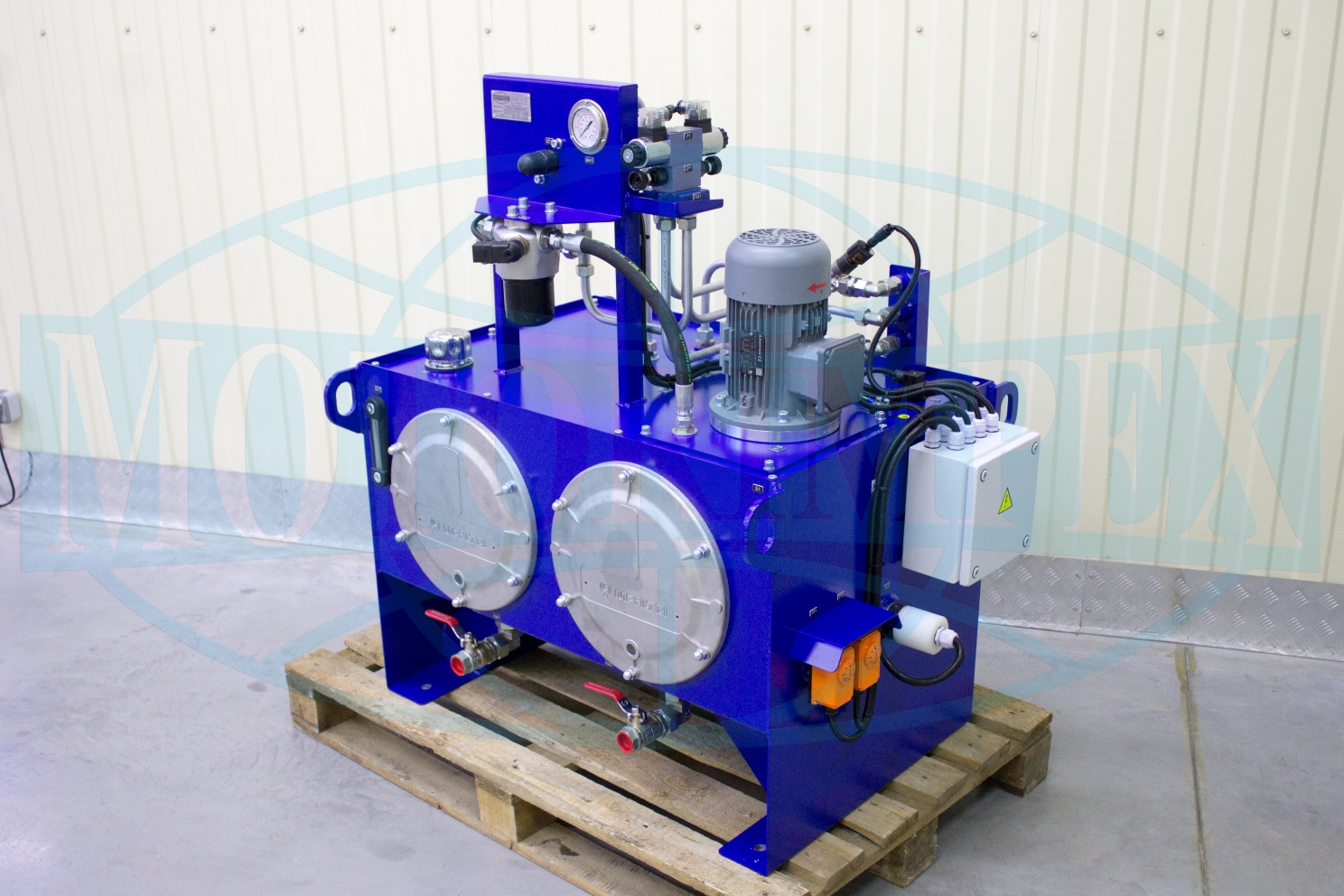

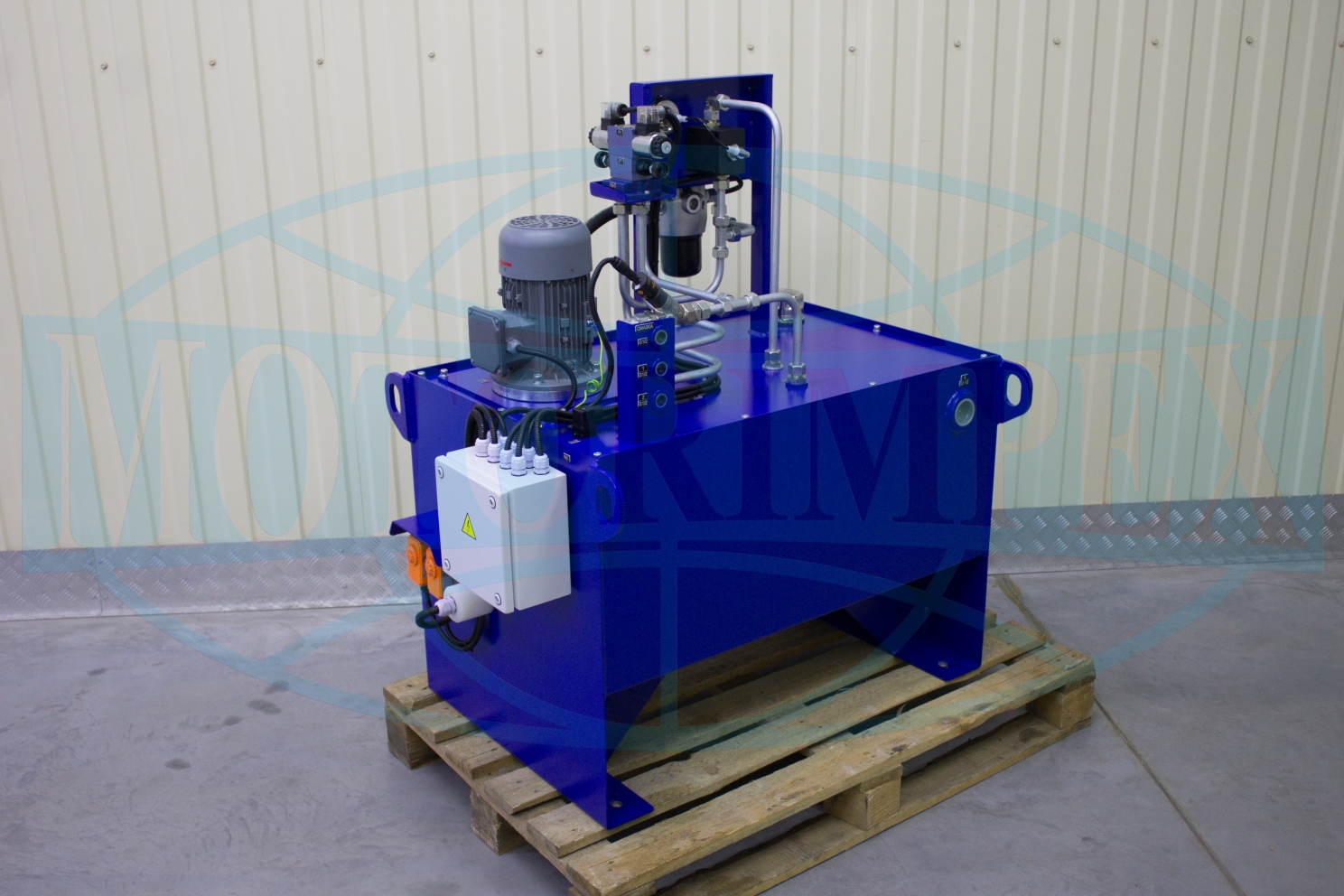

Hydraulic power unit МІ-1797 from "Motorimpex" Production Enterprise
Hydraulic power unit МІ-1797 for lubrication systems of the 1M660 lathe and screw-cutting machine
Hydraulic power unit МІ-1797 is used as a lubrication system of screw-cutting lathe 1М660. Design bureau and Production enterprise spent 9 days to complete the project.
Main technical characteristics:
— Nominal pressure: 30 bar;
— Pump consumption: 7,3 l/min;
— Power of electric engine: 0,75 kW;
— Volume of hydraulic tank: 160 l.
The equipment from leading manufacturers:
— directional control valve, throttle, check and safety valve from the manufacturer "Ponar",
— mounting manifold by "Oleodinamica Mozioni",
— level indicator by "Dropsa",
— gear pump by "Vivoil",
— filters for hydraulic oil by "MP Filtri".
