Hydraulic power unit MI-1388

Hydraulic power unit MI-1388 drives the hydroficated mechanisms of a coco-extinguishing electric truck.

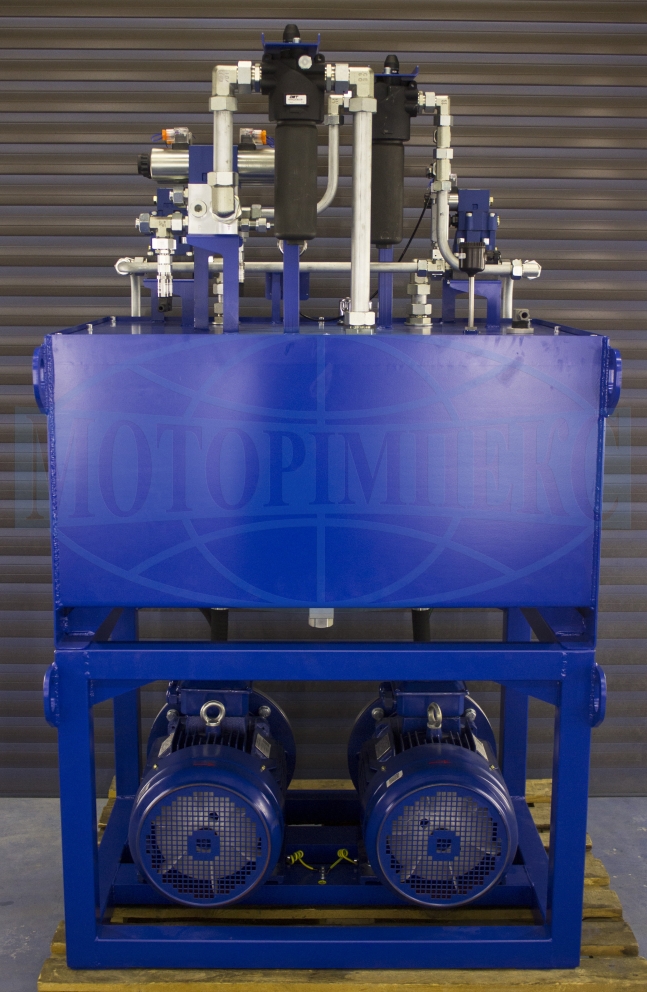

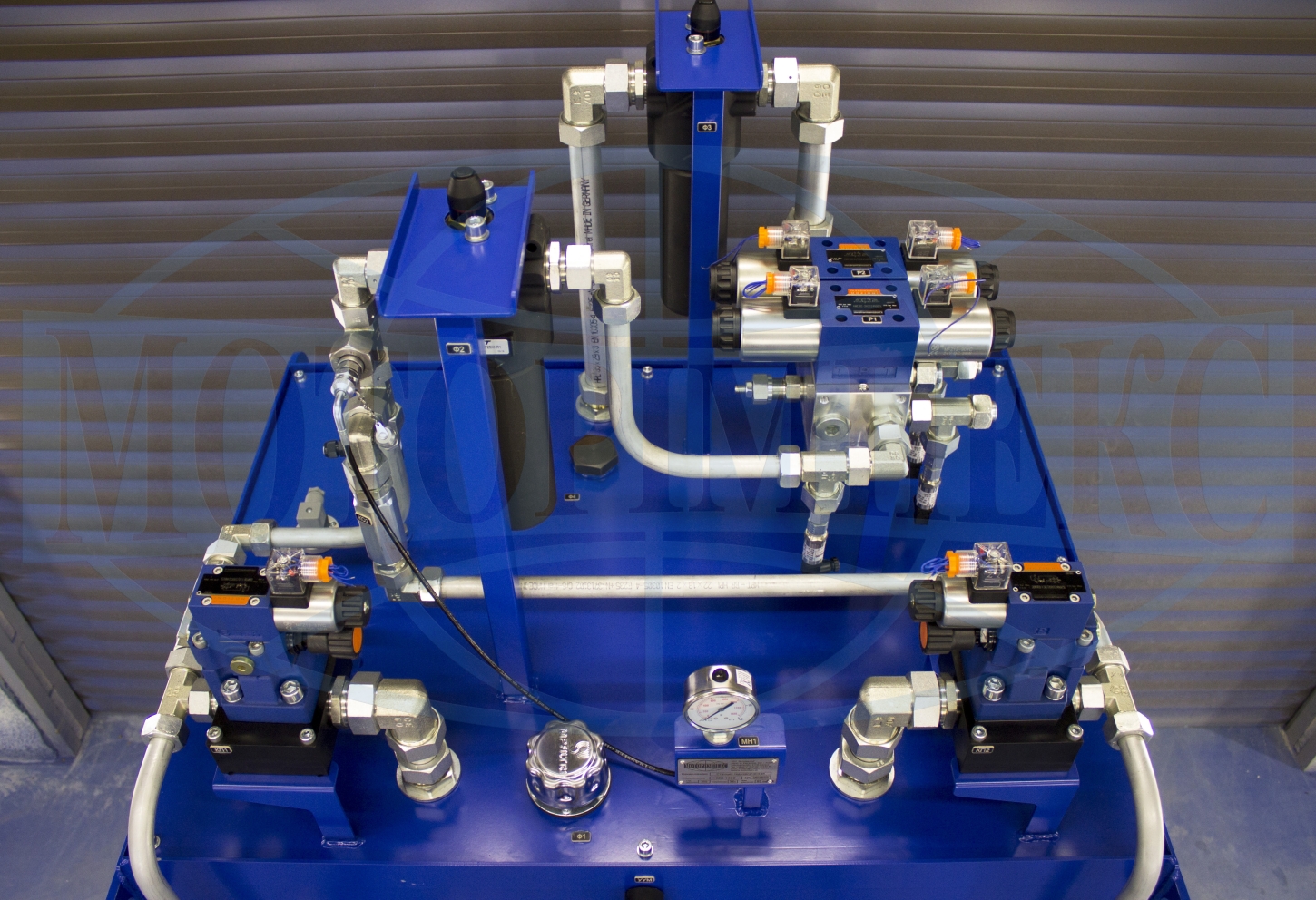

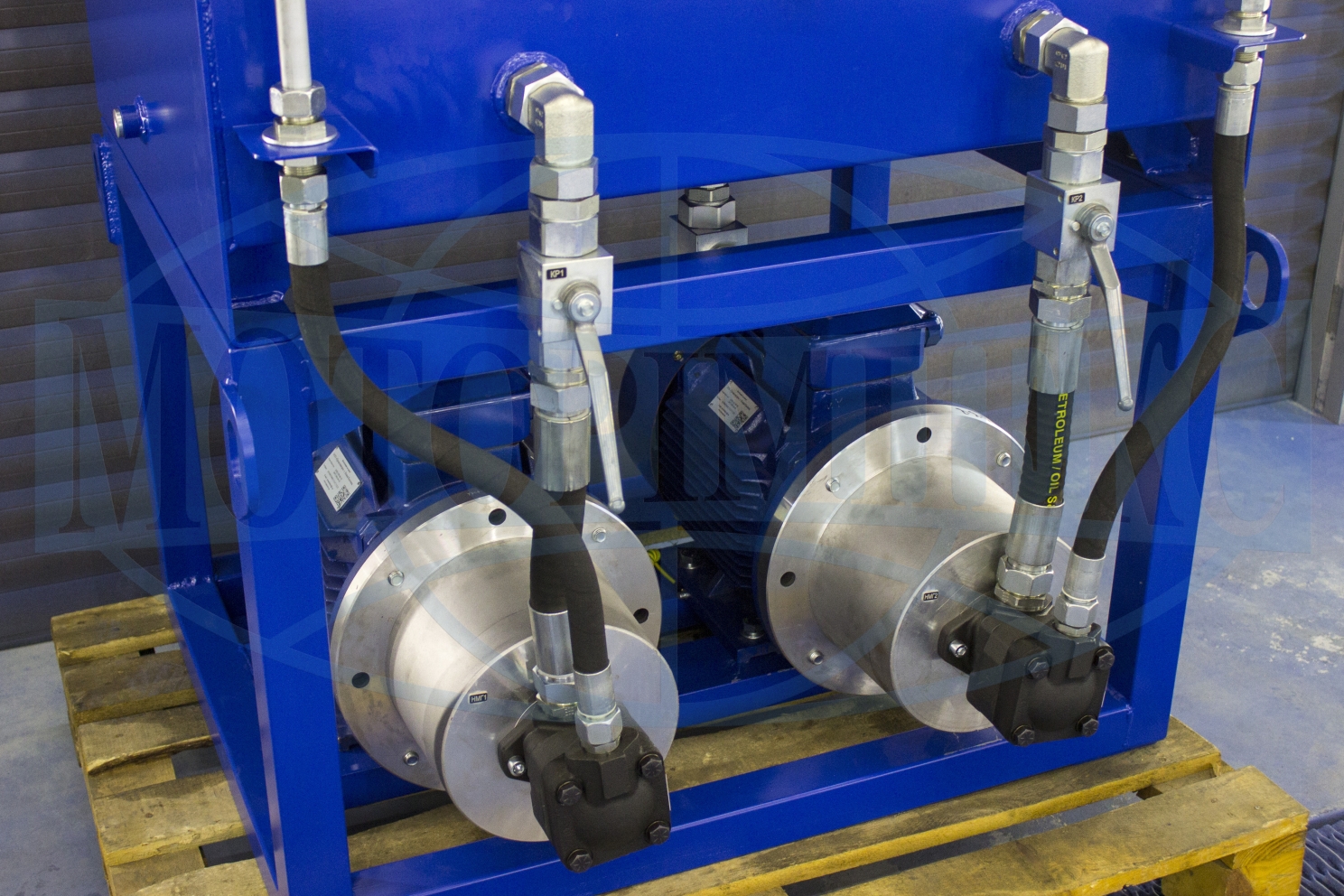

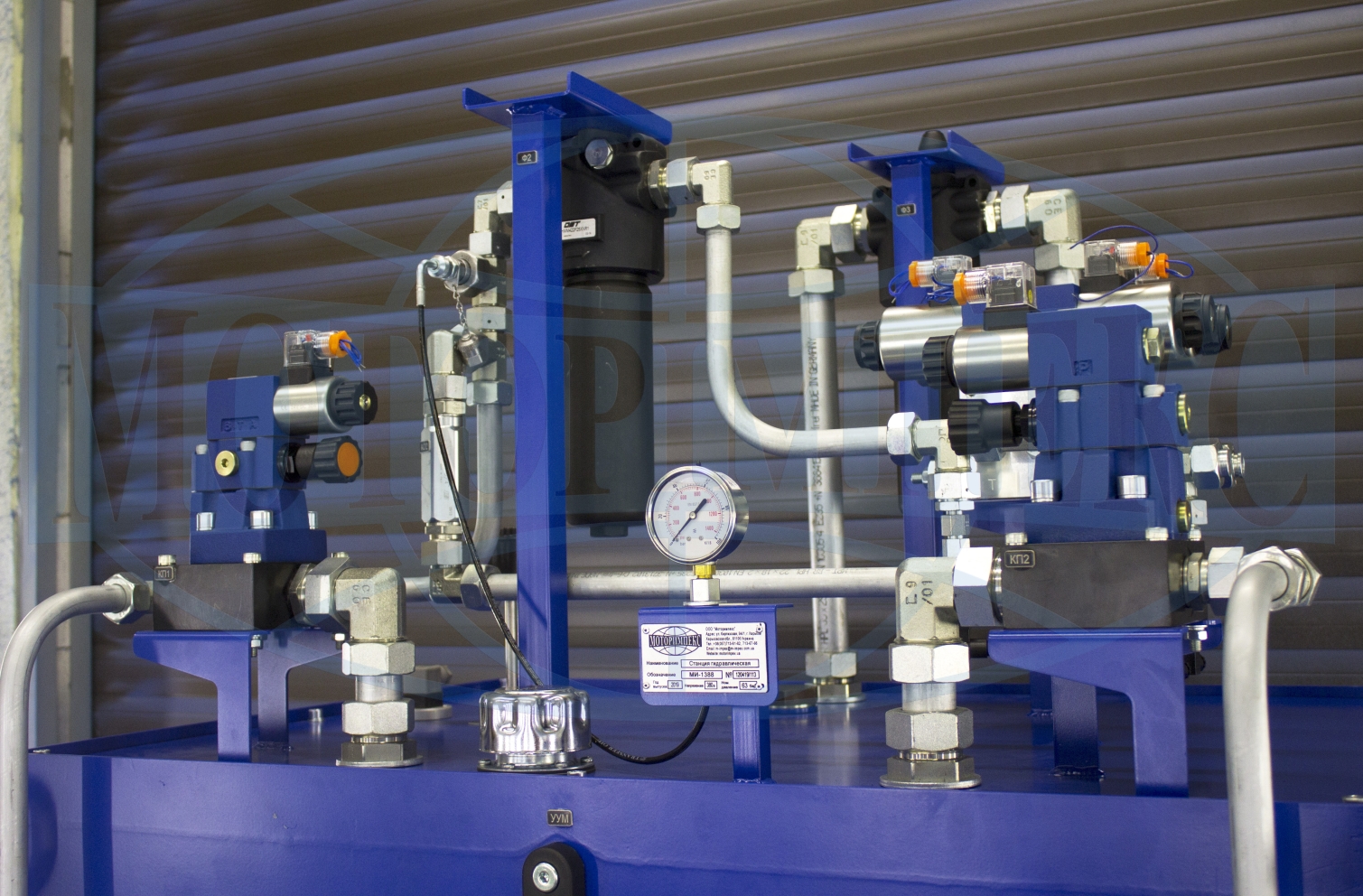

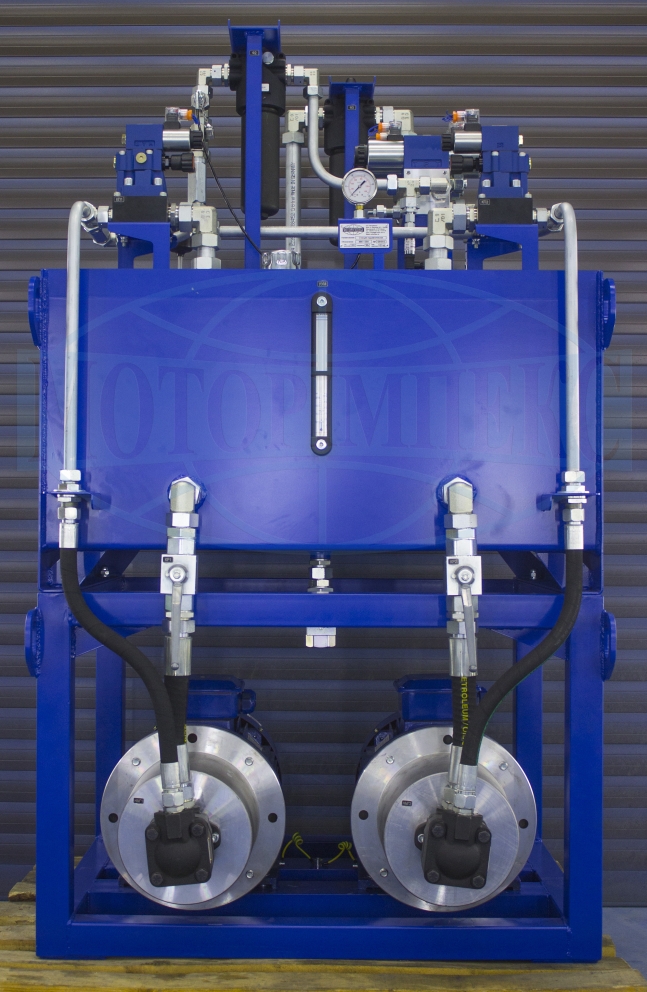

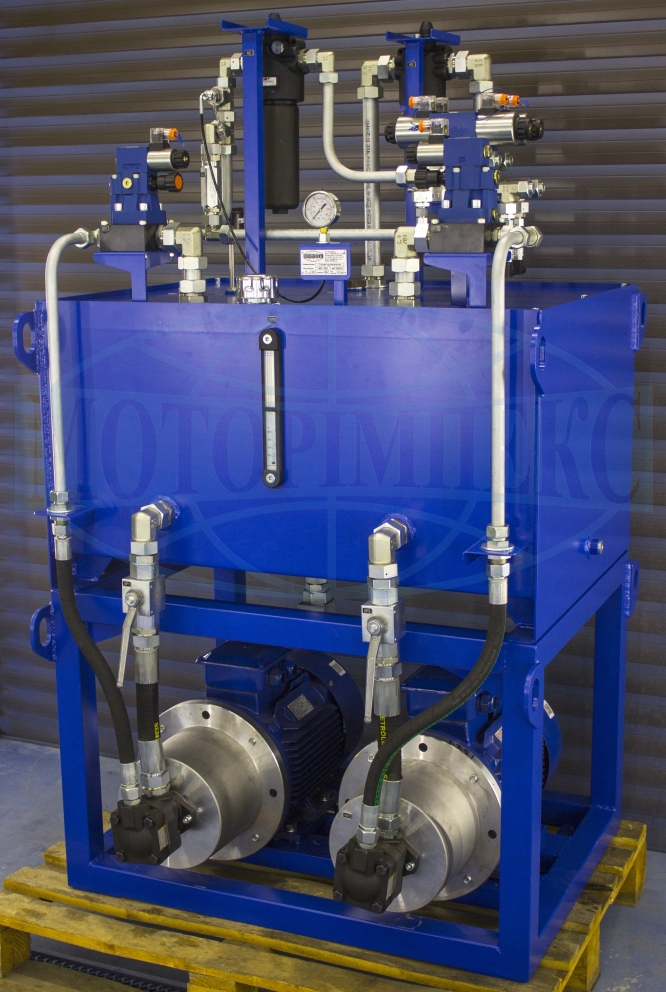

For convenient installation and connection of hydraulic power unit, we placed motor-pumped groups under the hydraulic tank and filters are on the cover.

Main technical characteristics:

— Pressure rating: 63 bar;

— Pump capacity: 42.5 cc/rev;

— Hydraulic Tank Capacity: 300 l;

— Power of electric motors: 15 kW.

"Motorimpex" Design Bureau and Production Enterprise developed and manufactured hydraulic power unit in 12 working days.

The equipment from leading manufacturers:

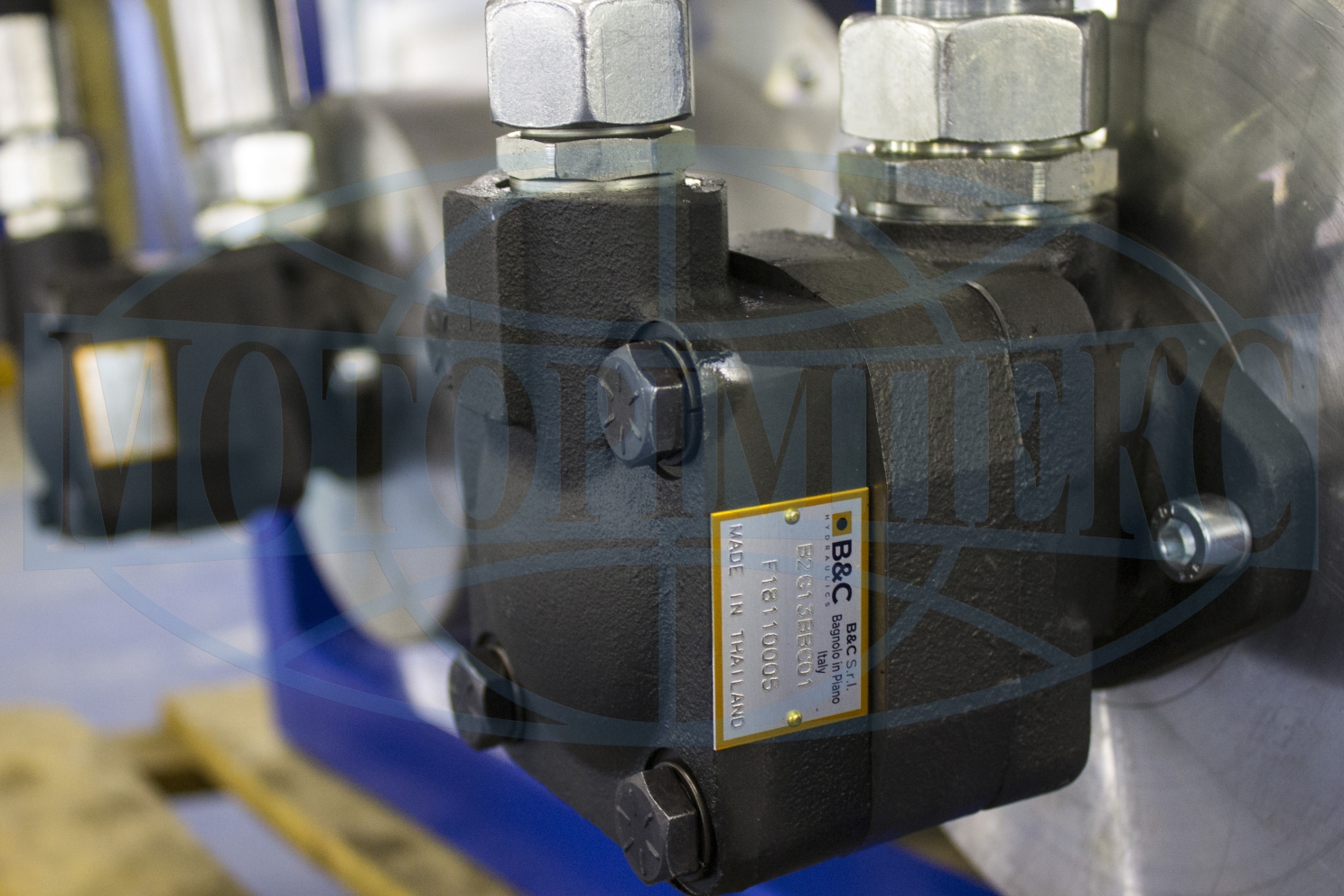

— vane hydraulic pumps BG line from "B&C",

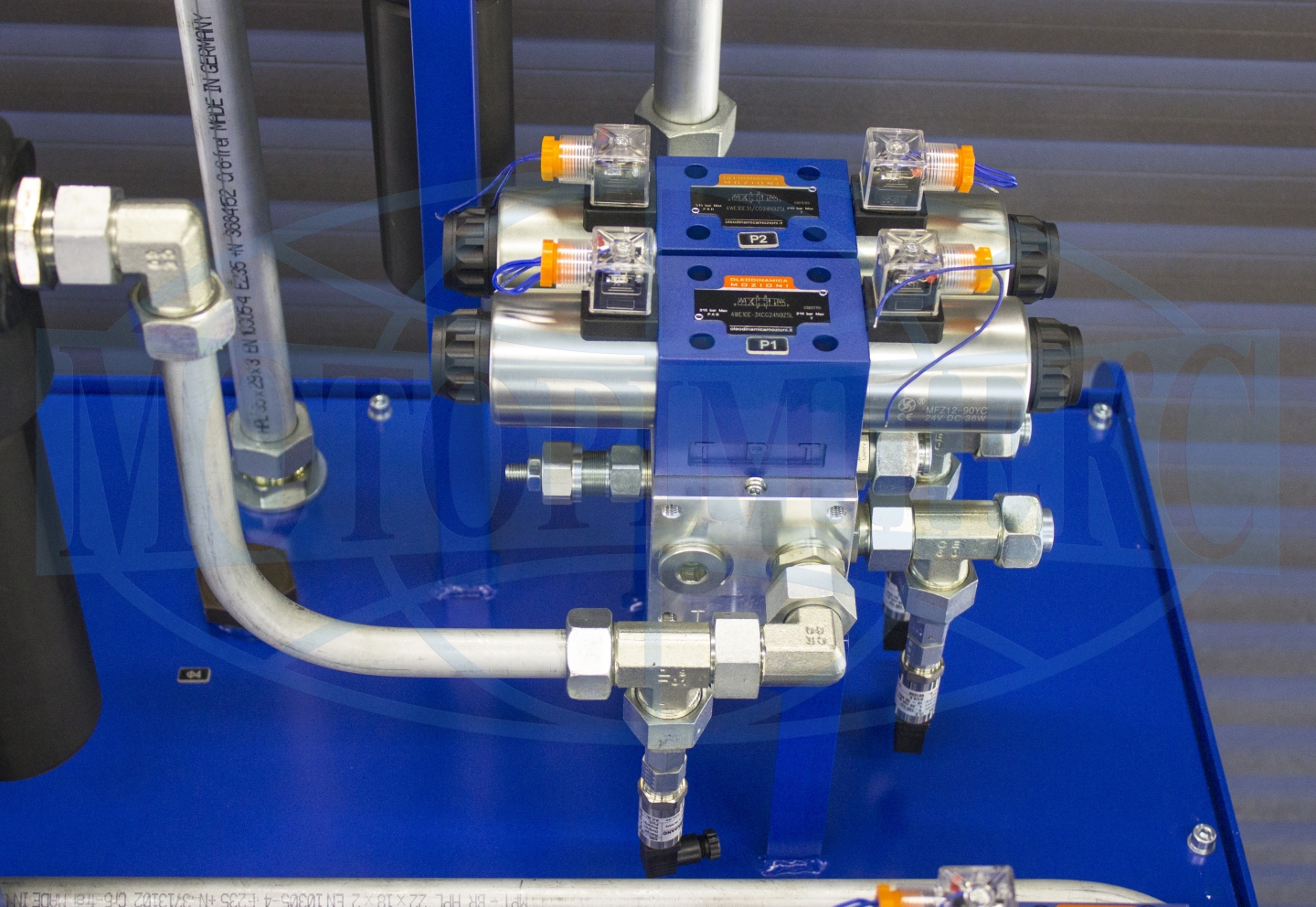

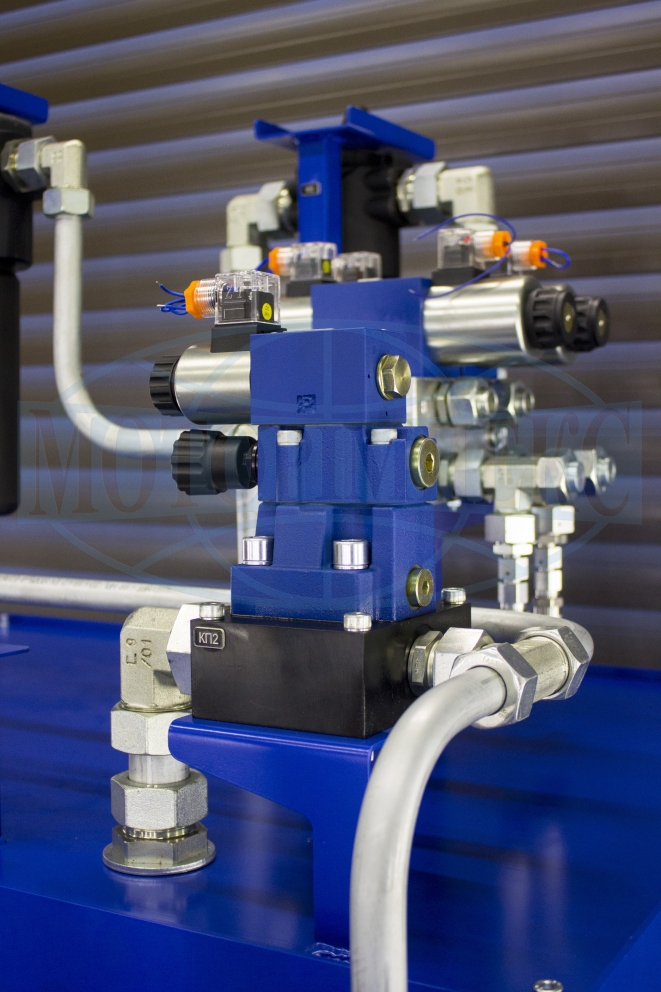

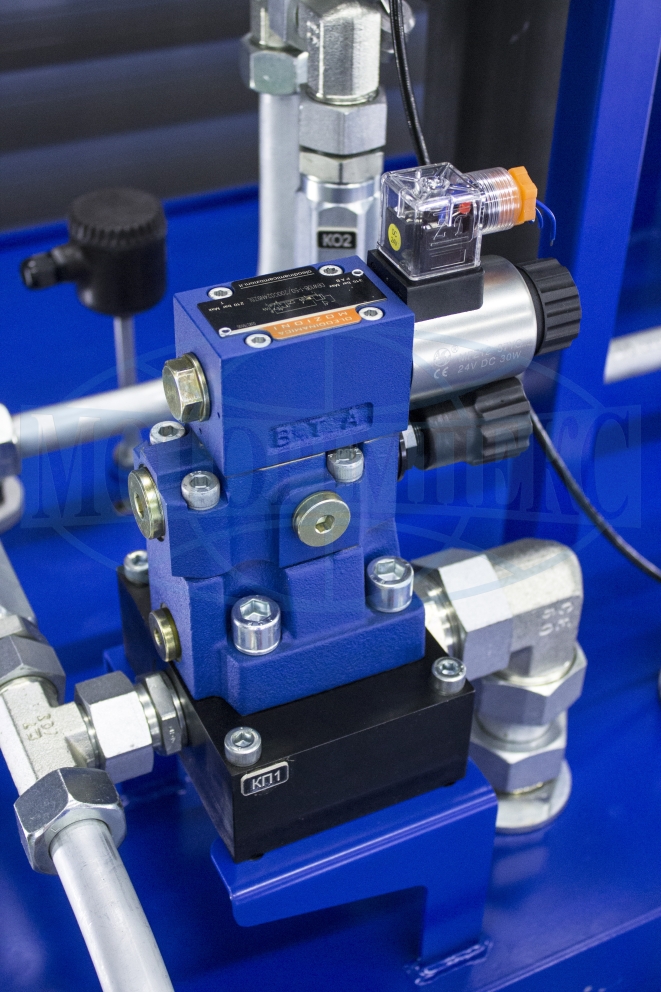

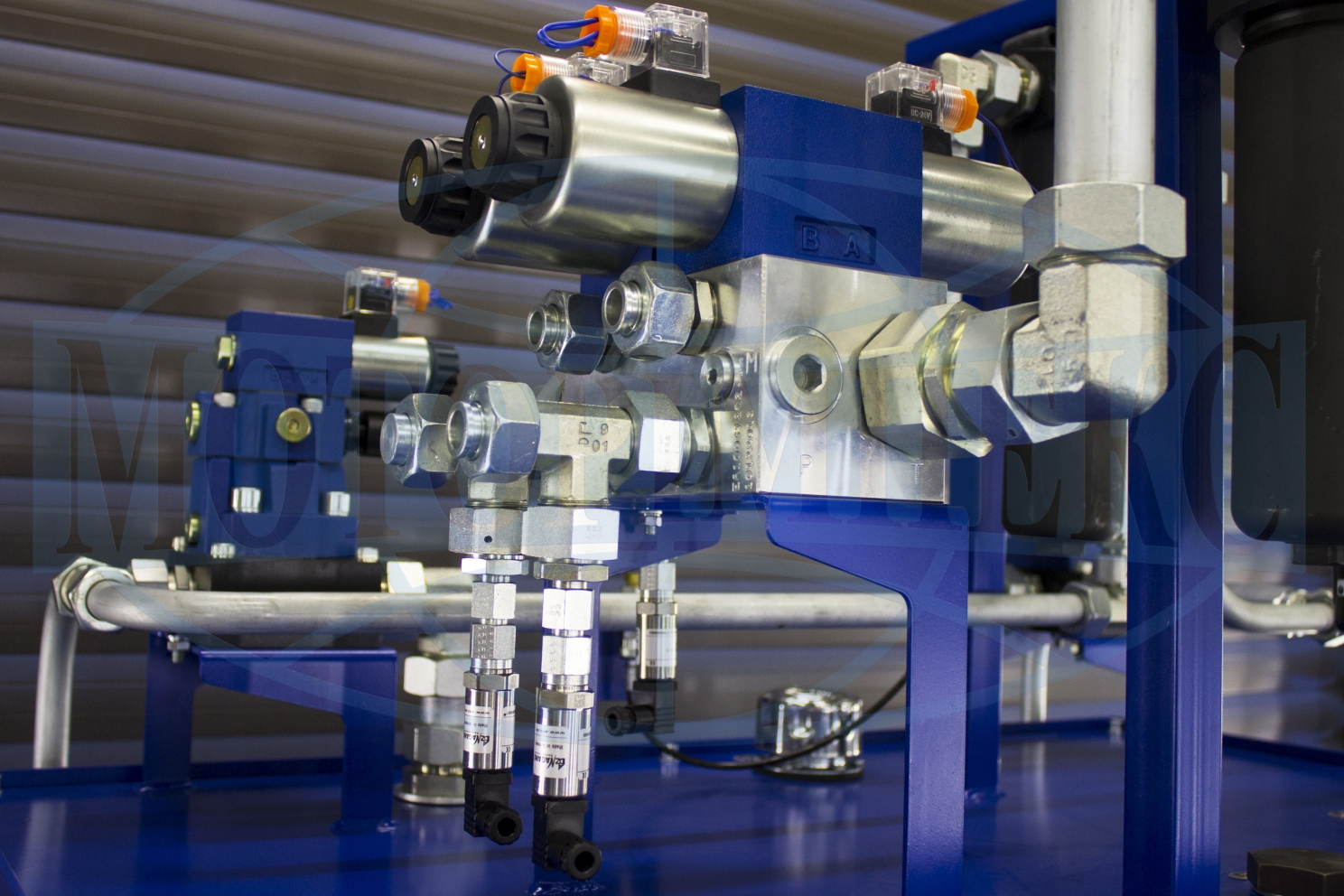

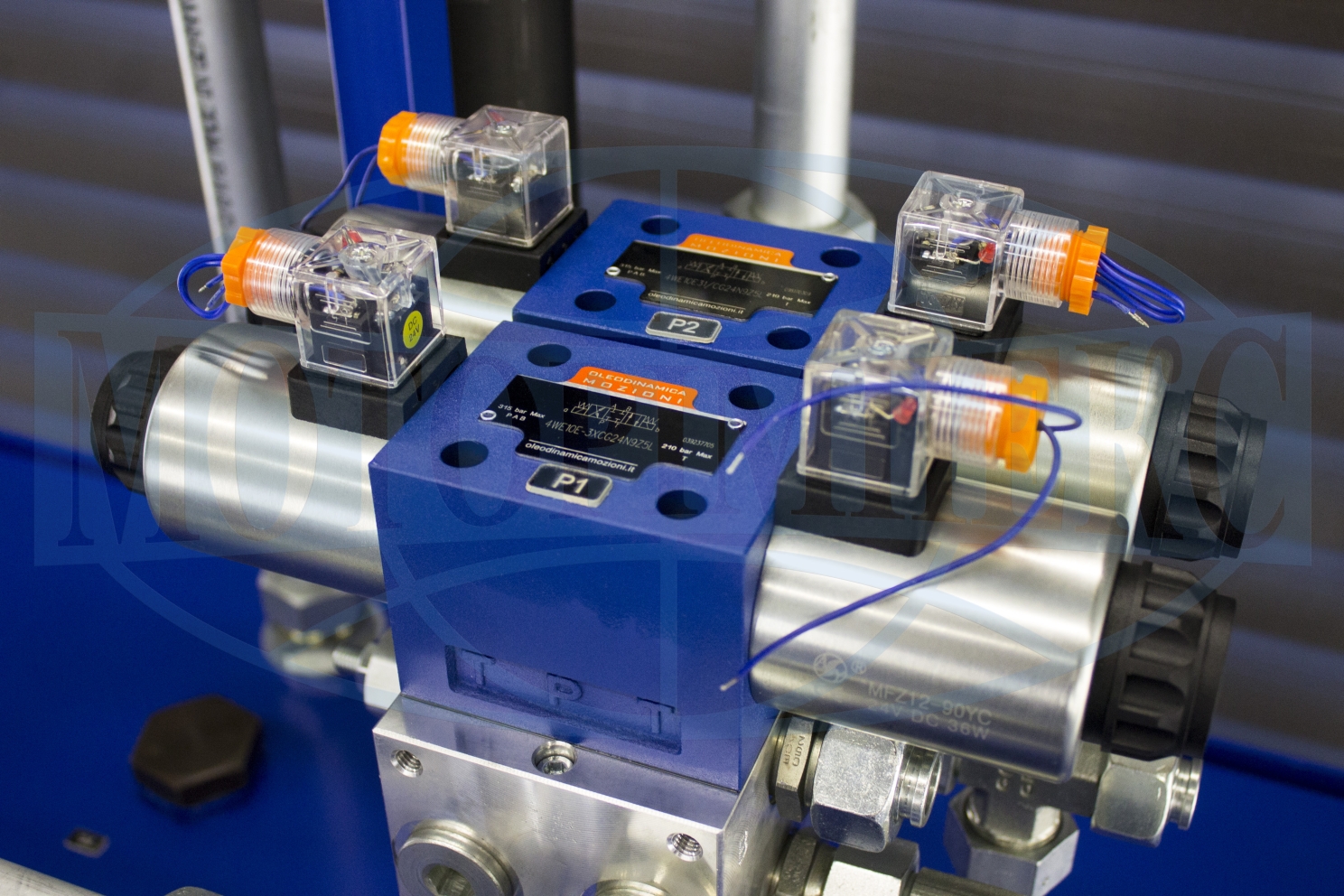

— relief valve with unloading DBW10 and directional control valves 4WE10E from "Oleodinamica Mozioni",

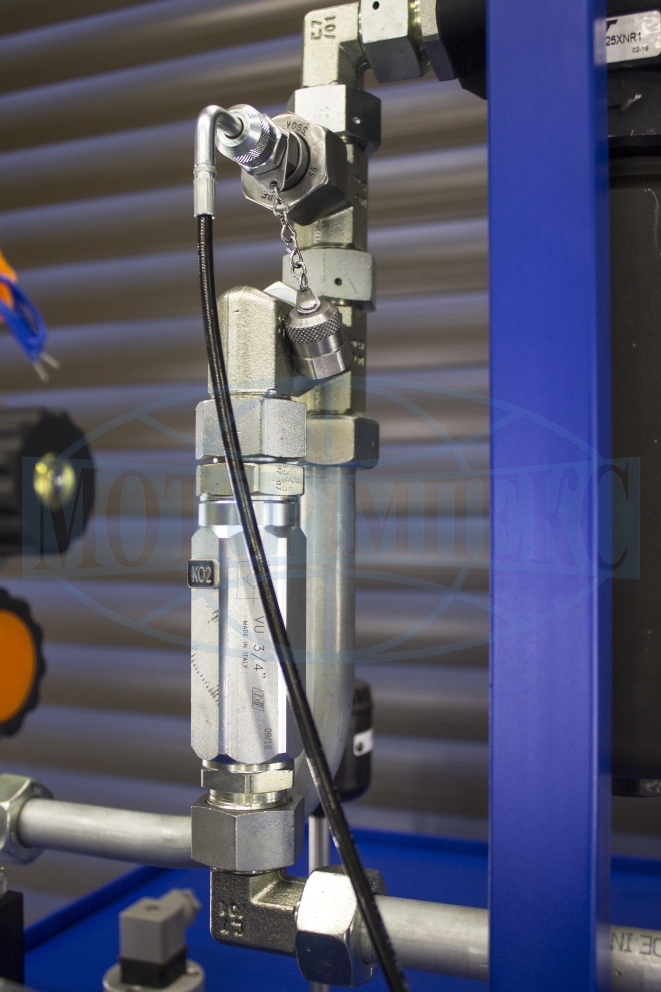

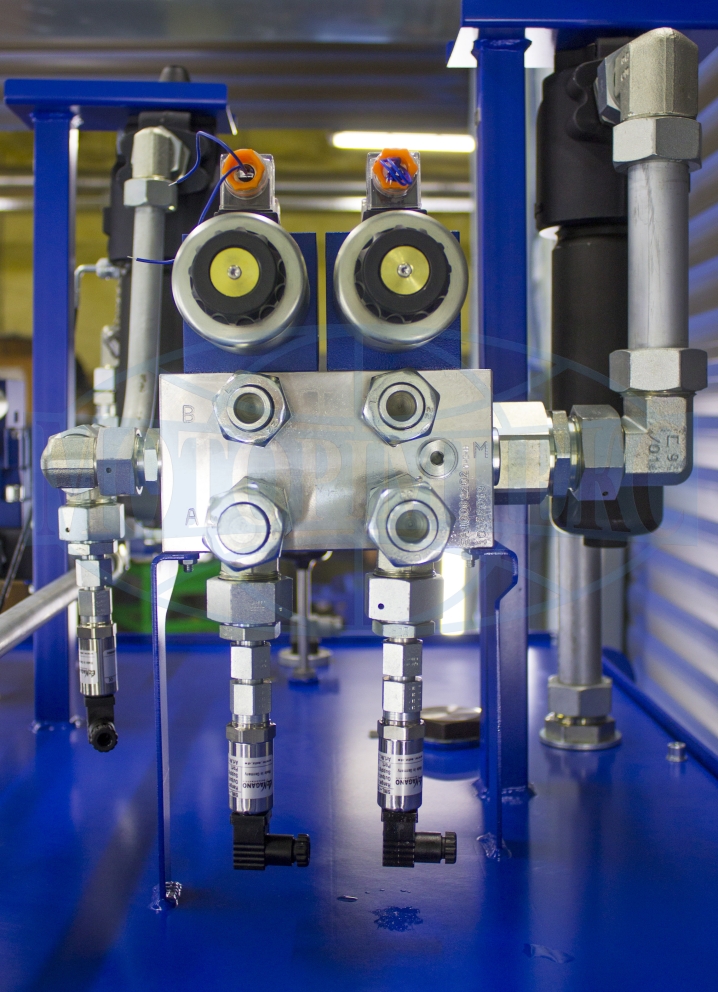

— check valves VU ¾”, ball valves RS2 and manifold for DN10 from "Oleodinamica Marchesini",

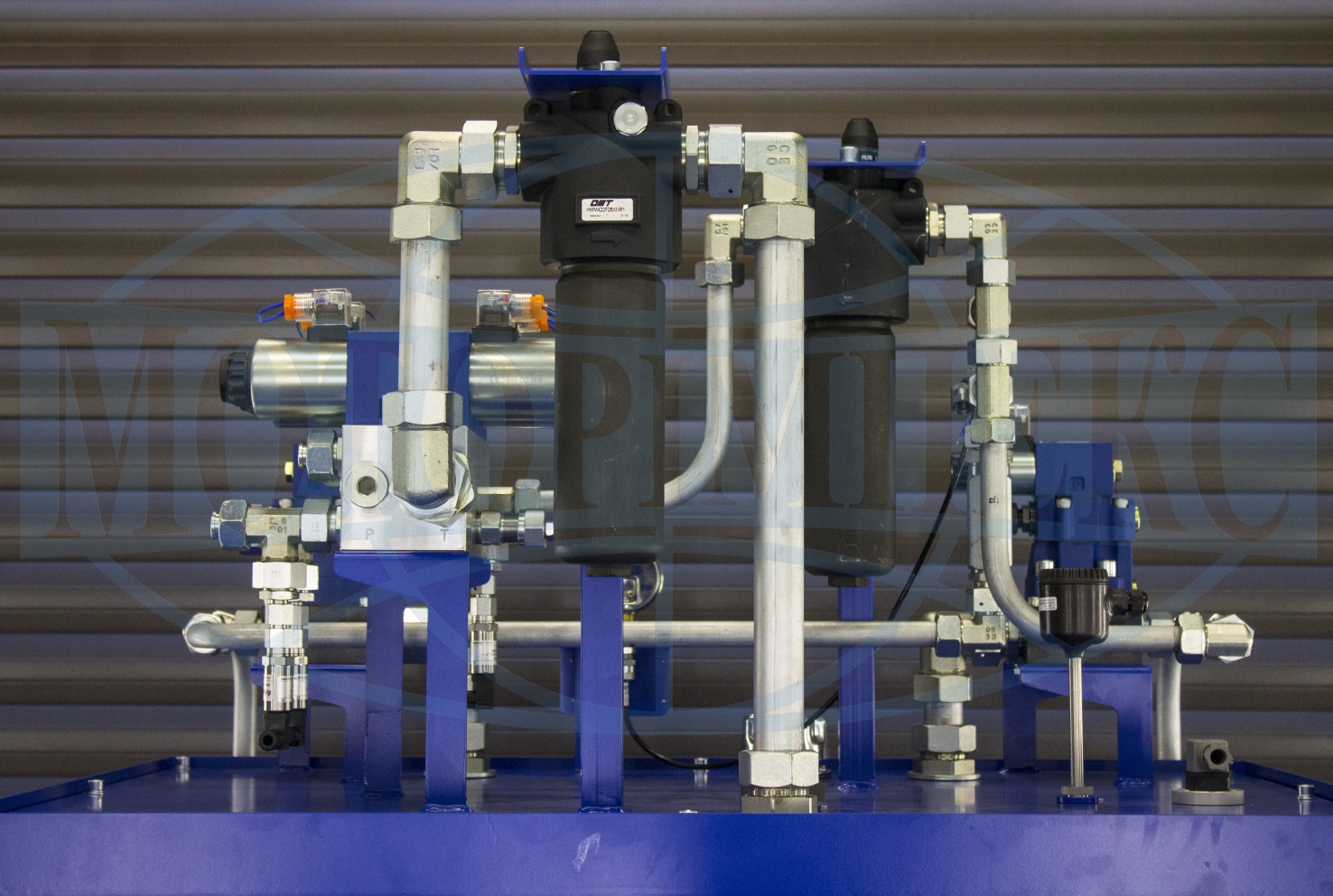

— pressure filters HMM422: "OMT",

— visual oil level indicator LVA20, filler TA80, bell housing and coupling: "MP Filtri".
