- Production of hydraulics
- Hydraulic power units

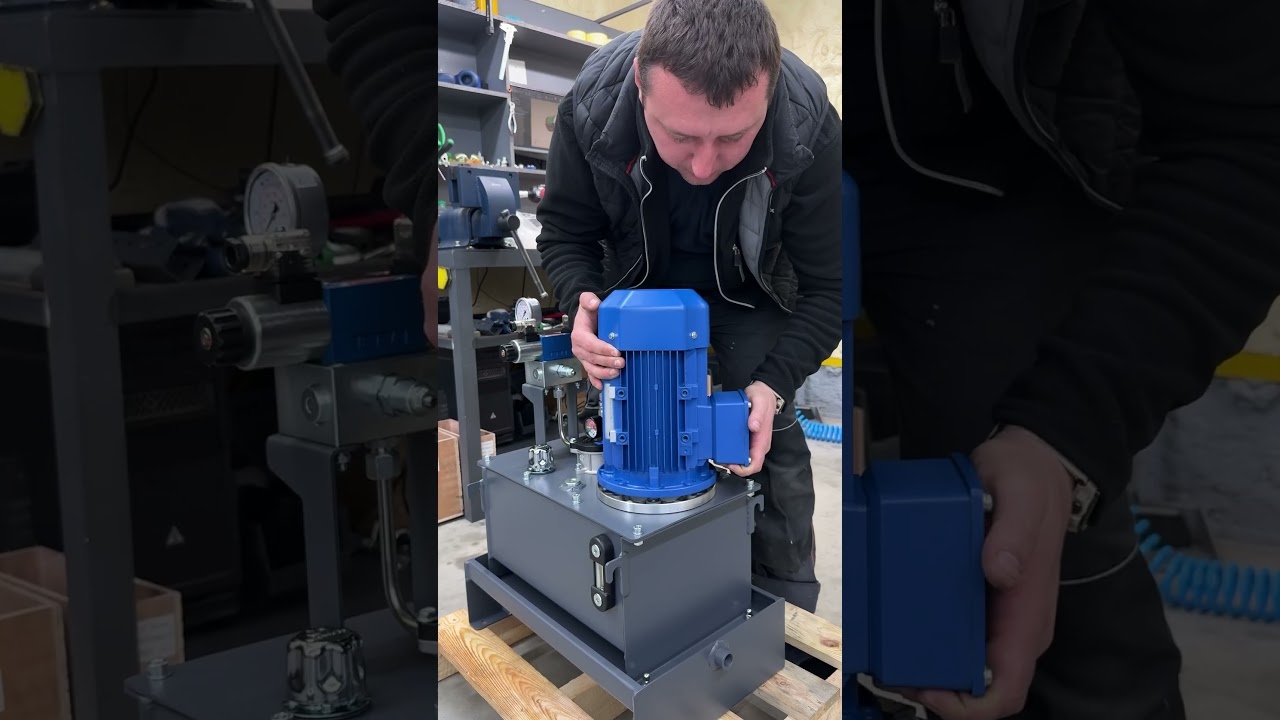

- Compact standard hydraulic power unit KRAPLYA
hydraulic tank capacity: 15 l, 30 l
pump flow rate: 4.5 l/min, 9 l/min
electric motor power: 1.5 kW, 2.2 kW
check valve setting: 150 bar, 120 bar
Everything you need — all in one unit. Available with or without a base, as well as with different numbers of outlets. Ideal for limited spaces.
Technical Specifications:
| PARAMETR | SIZE S-T | SIZE M-T |
| Hydraulic station weight | 49 kg | 78 kg |
|
Hydraulic tank capacity |
15 l | 30 l |
|
Pump displacement |
3.2 cm3/rev | 5.9 cm3/rev |
|
Pump flow rate |
4.5 l/min | 9 l/min |
|
Check valve setting |
150 bar | 120 bar |
|
Pump type |
gear |
|
|
Electric motor power |
1.5 kW | 2.2 kW |
|
Electric motor supply voltage |
230/400 V (AC) (3-phase) |
|
Price: starting at 35 000 ₴.
We will design and implement a hydraulic solution tailored specifically to your production needs. Contact us for consultation and orders.
Hydraulic Systems Production Department: +38 (050) 404-49-11, hydrostation@motorimpex.ua
Associated components
maximum working pressure: 120 bar
maximum displacеment: 16 cm3/rev
sectional design available
DN 6
maximum working pressure: 350 bar
maximum flow rate: 80 l/min
DN 6
maximum working pressure: 350 bar
maximum flow rate: 60 l/min
DN 6
maximum working pressure: 350 bar
maximum flow rate: 60 l/min
measuring range: 5–630 bar
hydraulic tank capacity: 15 l, 30 l
pump flow rate: 4.5 l/min, 9 l/min
electric motor power: 1.5 kW, 2.2 kW
check valve setting: 150 bar, 120 bar
pulling force: 6.8 t
flow rate: 60 l/min
working pressure: 155 bar
rope: 25 m x Ø 12 mm
pulling force: 4.5 t
motor displacement: 50 cm3/rev
flow rate: 5 - 45 l/min
rope: 25 m x Ø 10 mm
for testing and servicing hydraulic cylinders, with pressure control and idle speed control
maximum working pressure: 400 bar
maximum displacement of section: 75.1 cm3/rev
DN 6, 10
maximum working pressure: 315 bar
maximum flow rate: 180 l/min
capacity: 0.075–4 l
maximum working pressure: 350 bar
G3/8
maximum working pressure: 350 bar
G1/8, М5х0,8, G1/4, G3/8, G1/2
scheme: 5/2, 5/3
max. number of cycles per sec.: 5
response time: 0,05 sec
G1/8 – G1
maximum flow rate: 5200 l/min
-
