Mounting plates

Subplates series BLPV Subplates series BLPV

Hydro-pack

Product code: 6761

G3/8, G3/4–16UNF

Mounting plates Е_06 Mounting plates Е_06

Oleodinamica 2MP

Product code: 6389

DN 6

up to 10 directional control valves

G3/8, G1/2

maximum working pressure: 420 bar

Mounting plates Е_10 Mounting plates Е_10

Oleodinamica 2MP

Product code: 6391

DN 10

up to 6 directional control valves

G1/2, G3/4

maximum working pressure: 250 bar

Mounting plates Е_16 Mounting plates Е_16

Oleodinamica 2MP

Product code: 6392

DN 16

up to 5 directional control valves

G1, G1 1/4, G1 1/2

maximum working pressure: 350 bar

Subplates type G for directional control valves and relief valves Subplates type G for directional control valves and relief valves

Oleodinamica Mozioni

Product code: 6601

DN 6–32

G3/8–G1 1/2

maximum working pressure: 350 bar

for directional control valves WE, WEH, WH, WMM, WMD

for relief valves DB та DBW

Flangeable manifolds for cartridge valves Flangeable manifolds for cartridge valves

Luen

Product code: 5991

G1/4–G1

two-, three- and four-way

maximum working pressure: 300 bar

005.072 , 005.527, 005.529, 005.530, 005.533

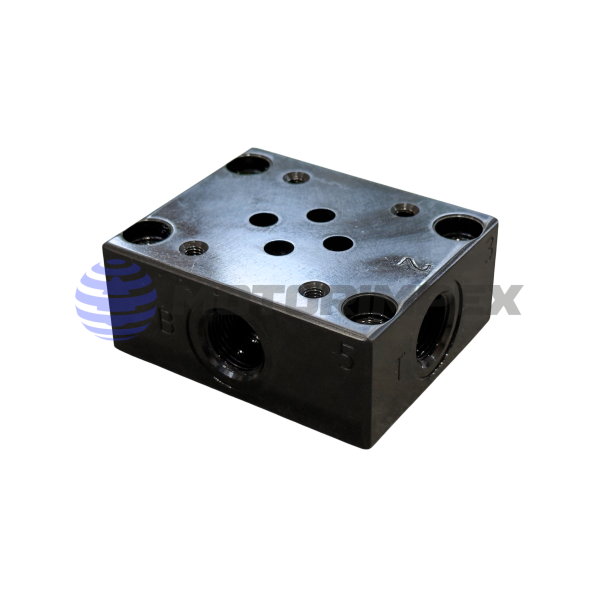

Mounting plates for DN 6 Mounting plates for DN 6

Motorimpex

Product code: 6347

DN 6

G3/8

maximum working pressure: 350 bar

maximum flow rate: 35 l/min

Mounting plates MOD6 Mounting plates MOD6

Motorimpex

Product code: 6348

DN 6

G1/4

maximum working pressure: 350 bar

maximum flow rate: 70 l/min

Transitional mounting plates MD10 Transitional mounting plates MD10

Motorimpex

Product code: 6349

from DN 6 to DN 10

maximum working pressure: 350 bar

maximum flow rate: 70 l/min

Mounting plates 3UL10/4 Mounting plates 3UL10/4

Motorimpex

Product code: 6350

for valve М33х2

ports G3/4

maximum working pressure: 350 bar

maximum flow rate: 90 l/min

Base cetop 3 with a relief valve C/VMP Base cetop 3 with a relief valve C/VMP

Oleodinamica Marchesini

Product code: 634

DN 6

G3/8

maximum working pressure: 300 bar

maximum flow rate: 35 l/min

Subplate, on-off valves BASE CETOP 5 C/VMP Subplate, on-off valves BASE CETOP 5 C/VMP

Oleodinamica Marchesini

Product code: 5280

DN 10

G3/4

maximum working pressure: 350 bar

maximum flow rate: 110 l/min

Monoblock with on side ports parallel connection BMA Monoblock with on side ports parallel connection BMA

OMT

Product code: 1888

DN 6

up to 8 sections

G3/8, G1/2

maximum working pressure: 300 bar

Monoblock with on side ports parallel connection BMA Monoblock with on side ports parallel connection BMA

OMT

Product code: 1889

DN 10

up to 8 sections

G1/2, G3/4

maximum working pressure: 300 bar

Valve block BPC3 with a relief valve Valve block BPC3 with a relief valve

HidroPnevmoTehnika

Product code: 965

DN 6

G3/8

maximum working pressure: 350 bar

maximum flow rate: 20 l/min

Valve block BPC5 with a relief valve Valve block BPC5 with a relief valve

HidroPnevmoTehnika

Product code: 966

DN 10

G3/4

maximum working pressure: 350 bar

maximum flow rate: 40 l/min

Subplates and multi-station subplates AP700 RP700 EP700 Subplates and multi-station subplates AP700 RP700 EP700

Bieri

Product code: 2282

DN 6

G3/8, G1/2

up to 6 sections

maximum working pressure: 700 bar

maximum flow rate: 25 l/min

Intermediate plates/throttle/check valve ZP700 Intermediate plates/throttle/check valve ZP700

Bieri

Product code: 2283

DN 6

maximum working pressure: 700 bar

maximum flow rate: 25 l/min

Connection Housings for Cartridge Valves Hydac Connection Housings for Cartridge Valves Hydac

Hydac

Product code: 2792

DN 6

G1/4–G 1 1/4

M14x1.5, M22x1.5, M27x2

two-, three- and four-way

maximum working pressure: 450 bar

Subplates type G WE6, IWE6, WH6, WMM6, WMD6, UZCR6, UZRB6, UZDK6, UZKB6, UZRC6, UZRR6, UZKC6, WZZC6, Z2S6, Z2FS6, USPH4, UZPR6 and UZUC6 Subplates type G WE6, IWE6, WH6, WMM6, WMD6, UZCR6, UZRB6, UZDK6, UZKB6, UZRC6, UZRR6, UZKC6, WZZC6, Z2S6, Z2FS6, USPH4, UZPR6 and UZUC6

Ponar

Product code: 826

DN 6

G1/4, G3/8, M14x1.5, M16x1.5

maximum working pressure: 350 bar

Subplates type G WE10, WH10, WMM10, WMD10, UZRB10, UZRC10, UZKC10, WZZC10, Z2S10, Z2FS10, USPH4, UZPR10 and UZUC10 Subplates type G WE10, WH10, WMM10, WMD10, UZRB10, UZRC10, UZKC10, WZZC10, Z2S10, Z2FS10, USPH4, UZPR10 and UZUC10

Ponar

Product code: 827

DN 10

G1/4, G3/8, G1/2, M22x1.5

maximum working pressure: 350 bar

Subplates type G WEH16, WH16, WMM16, Z2S16 and Z2FS16 Subplates type G WEH16, WH16, WMM16, Z2S16 and Z2FS16

Ponar

Product code: 828

DN 16

G1/4, G3/4, M14x1.5, M27x2

maximum working pressure: 350 bar

Subplates type G WEH22, WH22, WMM22, Z2S22 and Z2FS22 Subplates type G WEH22, WH22, WMM22, Z2S22 and Z2FS22

Ponar

Product code: 829

DN 22

G1, M33x2

maximum working pressure: 350 bar

Subplates type G for pressure relief valves DB10 and DBW10 Subplates type G for pressure relief valves DB10 and DBW10

Ponar

Product code: 830

DN 10

G3/8, G1/2

maximum working pressure: 350 bar

Mounting plates for hydraulics equipment

Mounting plates for hydraulics equipment application

Manifolds are provided for the distribution of fluid in hydraulic equipment, so that the assembly time of hydraulic systems becomes minimal. Also, mounting plates for hydraulic equipment can have a built-in safety valve in their device.

"Motorimpex" company offers you manifolds for hydraulic equipment following manufacturers: Ponar, OMT, Oleodinamica Marchesini, a complete list of which is presented on this page of the site.

You can order different types of manifolds:

  • For tiled (butt) equipment;
  • For cartridge valves;
  • With safety valve;
  • With pressure reducing valve

All products are equipped with catalogs with a detailed description of technical parameters and diagrams.
